TANQUANAUDIO TQA F10
Contact

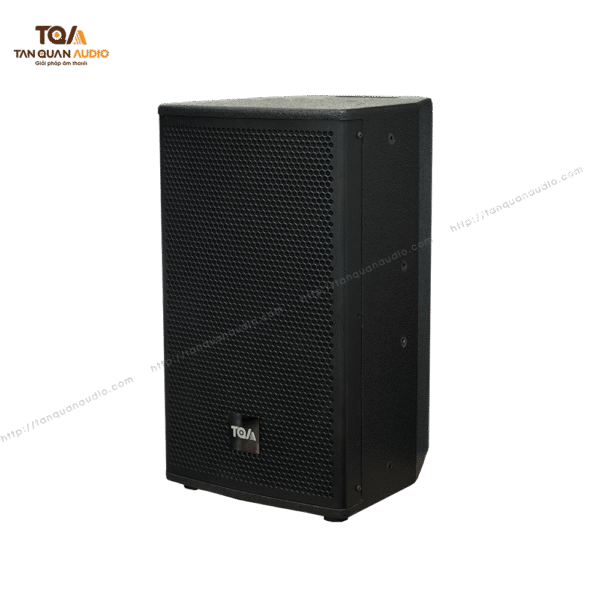

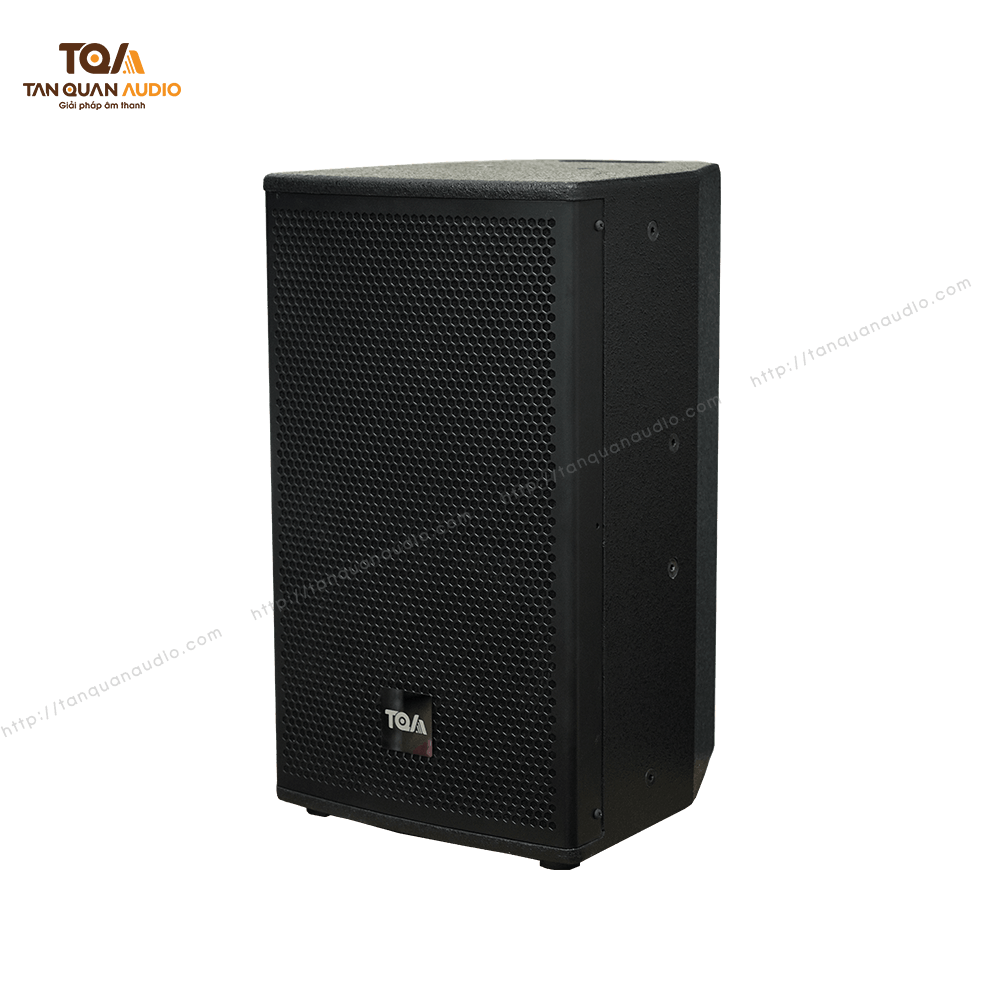

TANQUANAUDIO TQA F10 is a premium, compact KTV speaker. The TQA F10 utilizes a 10-inch (254mm) moisture-resistant woofer with an internal demodulating/cooling aluminum ring, providing high power handling, low distortion, and minimal power compression. It is equipped with a 44mm polymer diaphragm compression driver, delivering a power rating of 400 watts. The 70° x 100° coverage pattern ensures smooth and even sound distribution, whether positioned vertically or horizontally. A high-order passive network minimizes frequency band overlap.
FEATURES
● High-efficiency 10-inch woofer design with a 65mm voice coil
● 44mm polymer diaphragm compression driver
● Enclosure crafted from 15mm plywood with a robust and durable finish
● 70° x 100° coverage pattern for smooth and even on-and-off-axis response
● Rugged grille design backed by acoustically transparent fabric
● Precision-engineered crossover for optimal driver integration
● Black textured paint finish protects the speaker, ideal for commercial entertainment environments
APPLICATIONS
● Sound reinforcement for Karaoke and conferences
● Bars, nightclubs, or usage as stage monitors
● High-performance satellite speaker for use with subwoofers
Technical Specifications
● System Type: 10-inch, full-range, front-ported
● Frequency Range (-10 dB): 48Hz – 18kHz
● Frequency Response (± 3 dB): 75Hz – 20kHz
● System Sensitivity (1W @ 1m): 96dB
● Nominal Impedance: 8Ω
● Maximum SPL: 126dB (129dB Peak)
● Power Rating (RMS/Program/Peak): 300W / 600W / 1200W
● Coverage (H x V): 70° x 100°
● Dimensions (H x W x D): 510mm x 350mm x 370mm
● Net Weight: 17kg
● LF Driver: 1 x 10-inch (25cm), 65mm voice coil, ferrite magnet
● HF Driver: 1 x BFA350, 44mm voice coil, ferrite magnet

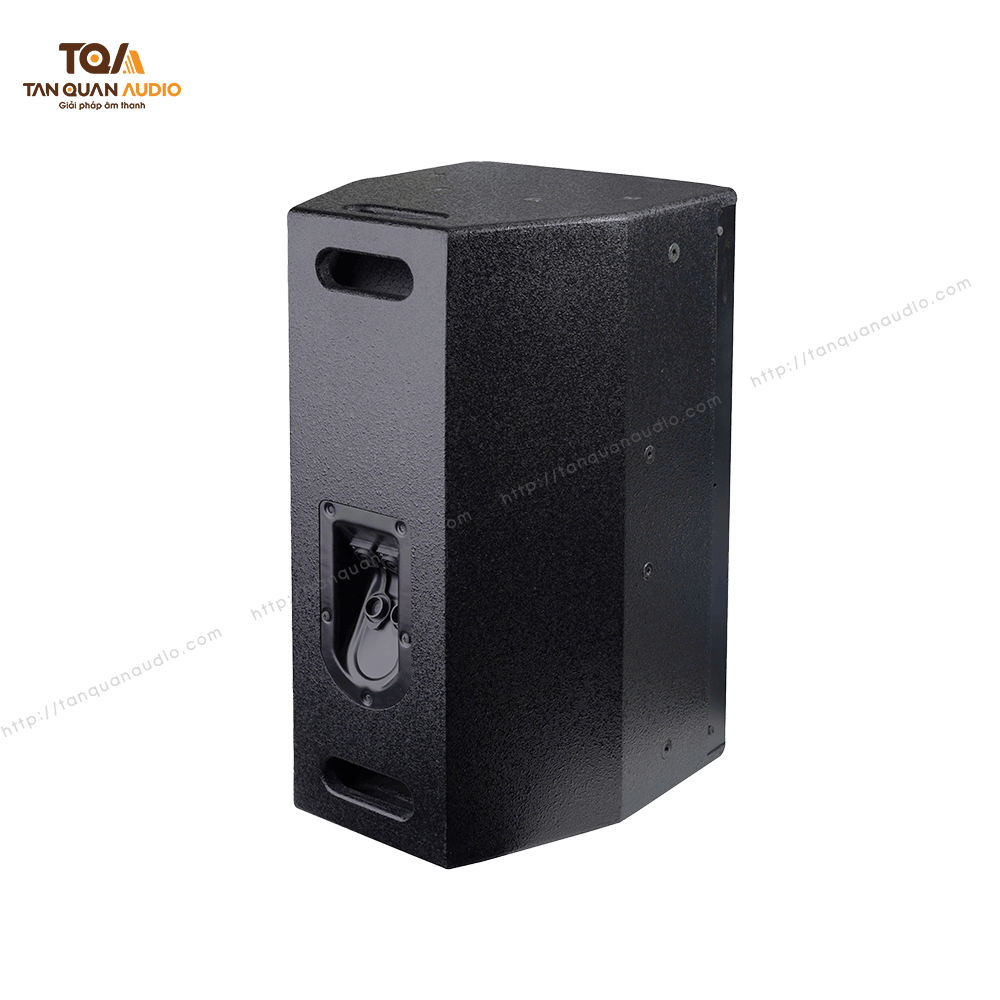

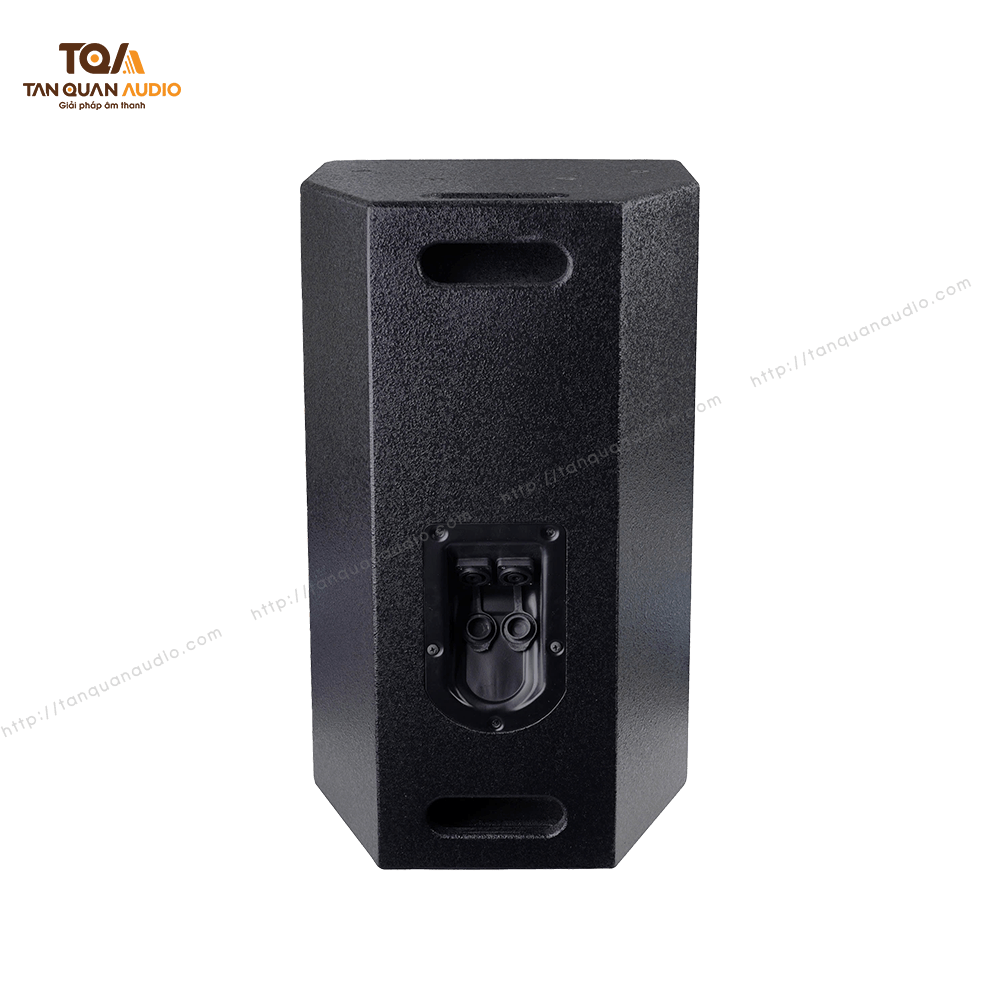

● Input Connectors: 2 x Neutrik® Speakon® NL4MP
● Enclosure Material: 15mm waterproof plywood, abrasion-resistant textured finish
● Color: Black
